Alexa Drenick

Terrain: An Exploration of Noise

Controls:

WASD - Camera Movement
Mouse - Camera Rotation
1 - Classic Perlin Noise
2 - Simplex Noise
3 - Animation of 3D Simplex Noise
L - Land
F - Increase Frequency
V - Decrease Frequency
O - Enable Octaves
P - Increase Exponent
M - Decrease Exponent

Here's a video of my project, playing around with the different noise modes and also frequency, octave, and exponent controls.

Description:

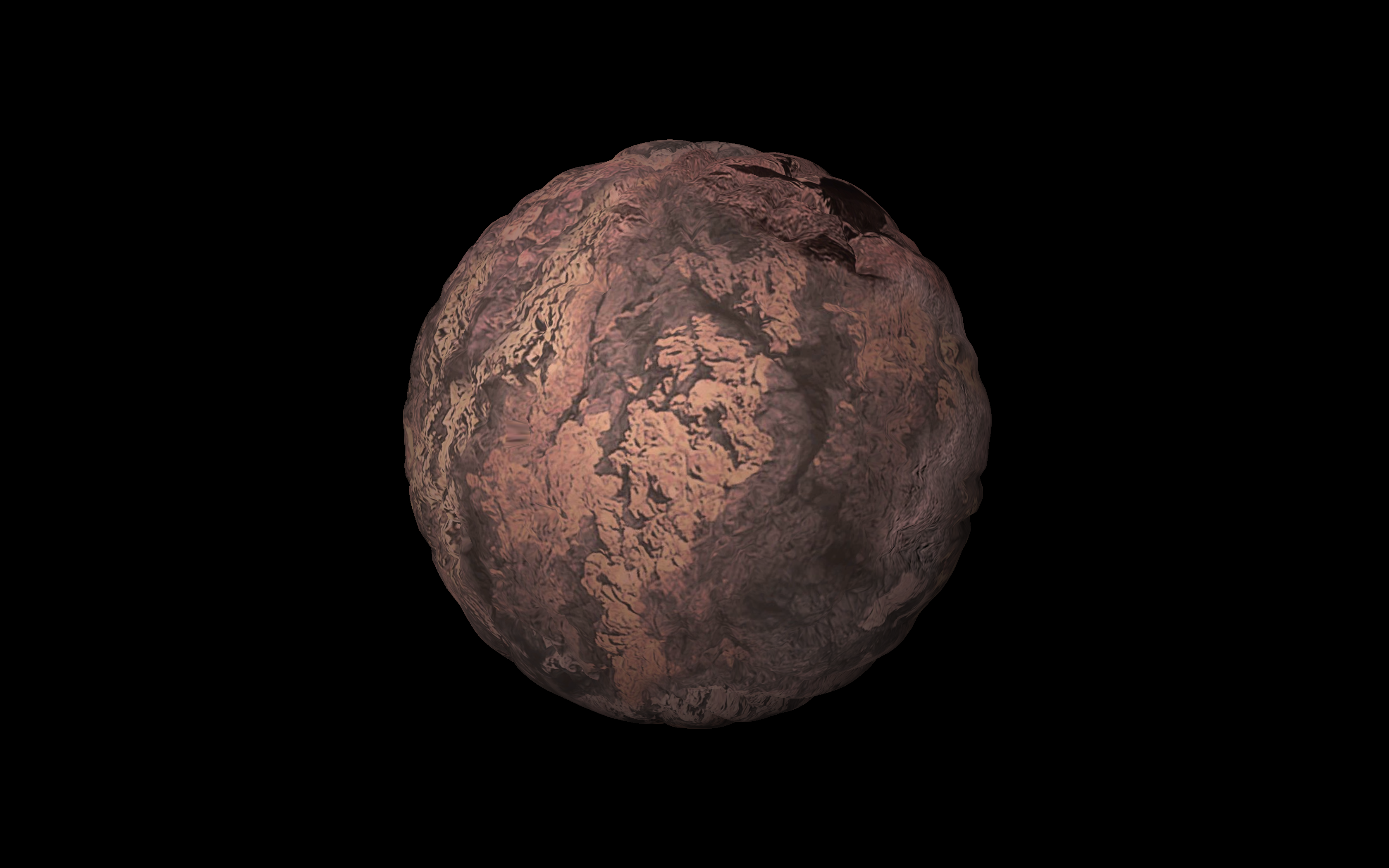

I started out by adding noise to a sphere representation of a planet to make its surface interesting. First I calculated perlin noise based on the vertex's x and z positions. Then I added that noise factor to the vertex position along the vertex normal. After I completed that, I decided to also implement simplex noise so I could compare the two. After researching, I wanted to play around with frequency, octaves, and an exponential function, so I implemented that and allowed the numbers used to be controlled by the keyboard.

Next I decided I wanted to be able to land on the planet, so I created a 300 vertex by 300 vertex quad to create terrain with. I followed the same process as before, but using x and y instead of x and z to calculate noise. And since the normal of each vertex was just up in y, the noise factor only got added in the y direction, as intended. I also decided to add in water below a certain height to add interest to the scene.

Sources

Perlin Noise:

//http://mrl.nyu.edu/~perlin/doc/oscar.html#noise


Setting up land terrain:

https://blogs.igalia.com/itoral/2016/10/13/opengl-terrain-renderer-rendering-the-terrain-mesh/


Frequency and Octaves affect on terrain:

https://www.redblobgames.com/maps/terrain-from-noise/


Simplex Noise:

//http://www.davidcornette.com/glsl/noise.html
